✅ Rugged, Weatherproof & Built for Harsh Environments

Product Code: SME-SS316L-2100H

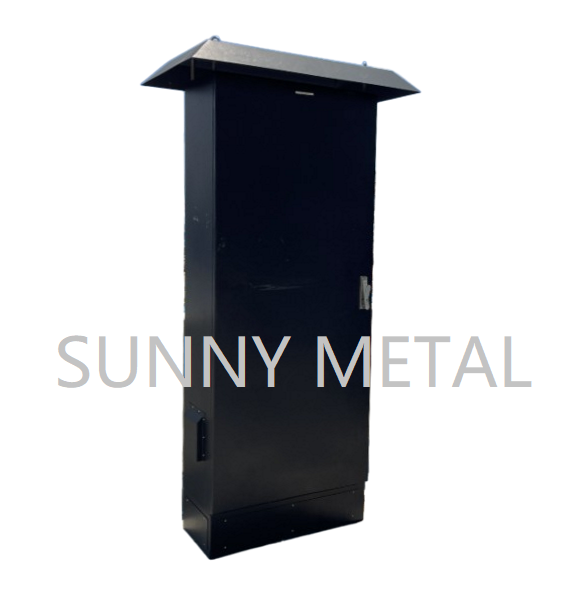

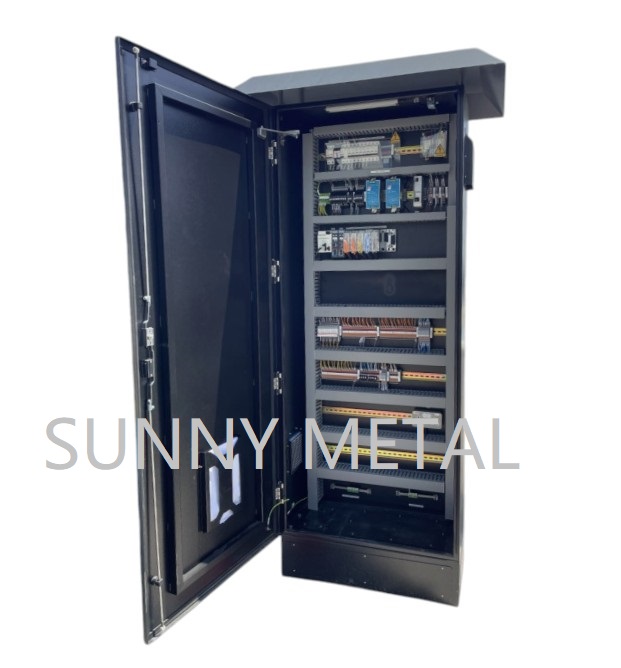

Category: Outdoor Electrical Enclosures / Control Panels

📐 Specifications

• Dimensions: 2100mm (H) × 800mm (W) × 400mm (D)

• Material: Stainless Steel SS316L, 2mm thick (corrosion-resistant, marine-grade)

• Finish: Powder-coated in RAL9011 Black (matte)

• Protection Rating: IP65 (dust-tight, protected against water jets – suitable for outdoor use)

• Design Features:

  • Floor standing, heavy-duty construction

  • Integrated roof shelter for rain & sun protection

  • Filtered fan with louvers for ventilation

  • Document pocket on door interior

  • Cable entry plates (separate for control and power)

  • Lockable front door with concealed hinges

  • Mounting frame & angle bar base (50mm × 50mm) for easy installation

⚡ Applications

• Power distribution and control

• Outdoor PLC & automation systems

• Transportation & infrastructure projects

• Communication and monitoring systems

• Industrial and utility plants

🔧 Customization Options

• Additional cut-outs or gland plates

• Custom powder-coating colors

• Insulation / EMC shielding

• Double-wall construction for enhanced thermal performance

📞 Contact Us

For quotations, project inquiries, or custom requirements:
Sunny Metal & Engineering Pte Ltd
Email: sales@sunnymetal.com | Phone: 6545 1488
