Product Description

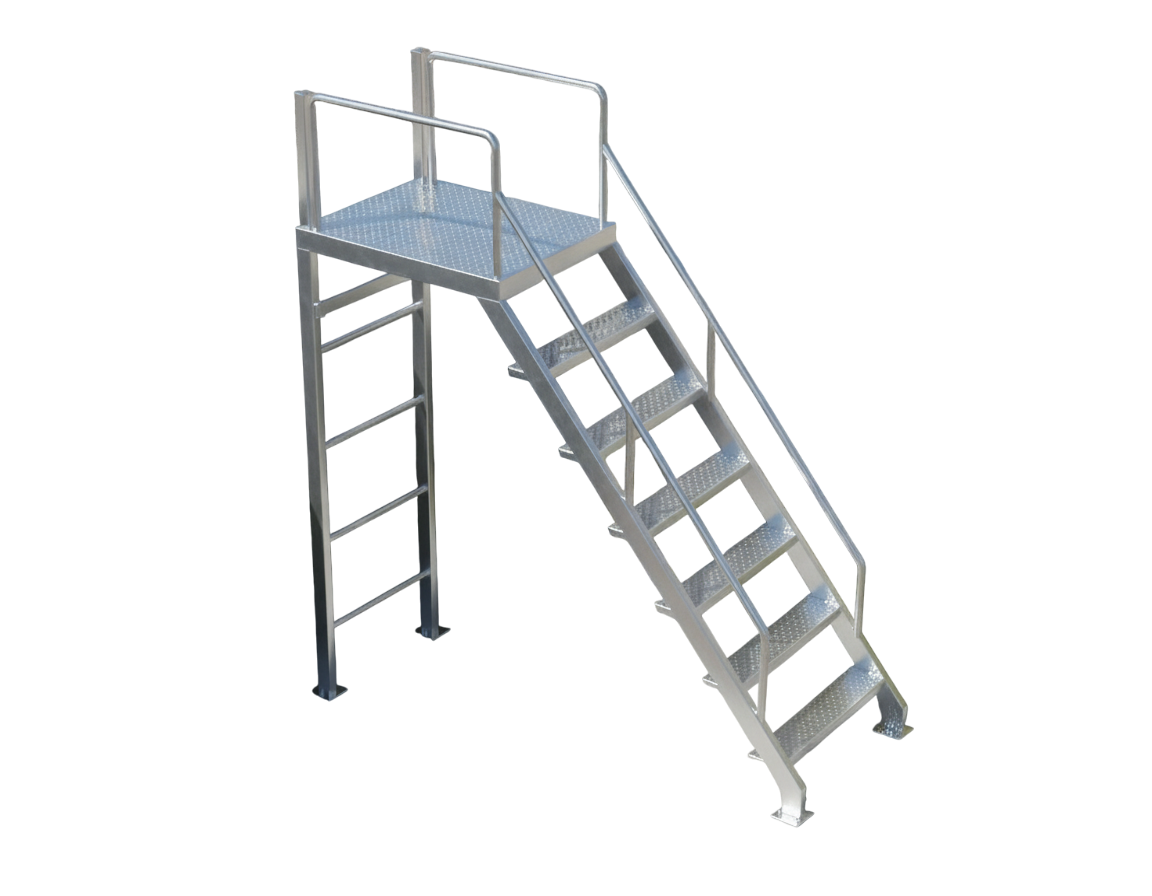

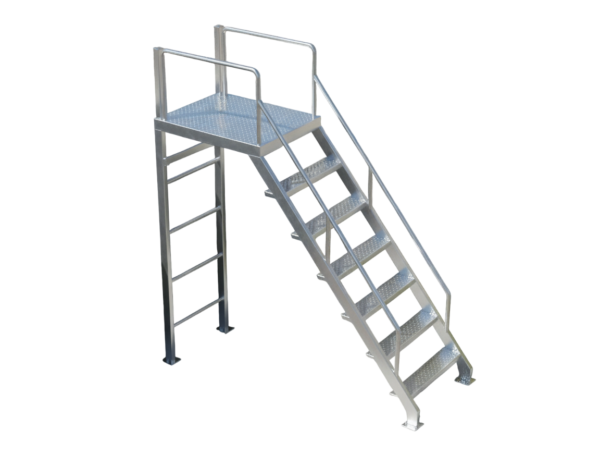

This custom-fabricated aluminum access ladder with platform is designed for safe and convenient access over bund walls, tanks, machinery, or elevated work areas. Built from high-strength aluminum, it combines robust structural integrity with lightweight handling, making it easy to install and corrosion-resistant for long-term use.

The platform features a non-slip chequered plate surface, safety handrails, and dual access options – an angled stairway with handrails for easy climbing and a vertical back ladder for compact access. Ideal for facilities requiring frequent operator movement and maintenance work.

Key Specifications

• Material: High-strength aluminum (lightweight & corrosion-resistant)

• Platform Size: 450 mm (L) × 450 mm (W)

• Platform Height: 1500 mm

• Overall Height with Handrails: 2500 mm

• Stairway Inclination: 45° (approx.)

• Stair Width: 450 mm clear

• Number of Steps: 7 anti-slip chequered plate steps

• Secondary Access: Integrated vertical ladder (rear)

• Handrail Height: 1000 mm (on platform and stair sides)

• Base Footprint: 1170 mm (stair run length) × 600 mm (width)

• Finish: Natural aluminum mill finish (optional powder-coated finish available)

Features

✅ Anti-slip surface on both steps and platform
✅ Dual access: angled stairway + rear vertical ladder
✅ Safety handrails on stairs and platform (removable option available)
✅ Maintenance-free aluminum (no rusting, ideal for outdoor use)
✅ Lightweight yet heavy-duty construction for industrial environments
✅ Customizable sizes available on request

Applications

• Bund wall access (oil & chemical plants)

• Tanker and silo access

• Factory and warehouse platforms

• Maintenance walkways

• Elevated machinery access

Reference: Q30329
